Infrastructure • Skyline Corporate Recovery Oasis

KAFD 310 Tower

Luxury infrastructure installation project featuring premium wellness and water experience solutions, crafted for the highest tier of architecture.

Systems Specified

Technical Installation
System Calibration
Premium Materials
Project Management
LocationRiyadh
CompletionMMXXIV
Scope CategoryInfrastructure Portfolio
KAFD 310 Tower
KAFD 310 Tower completed Highlight
— THE COMPLETED SANCTUARY

High-Rise Wellness Deck

A private executive recovery suite featuring panoramic saunas, custom cedar details, and a high-flow contrast tub suspended on a sky-rise floor.

Acoustic TuningNR-20 Decibel Target
Hydro-Flow RateLaminar Calibrated
TECHNICAL CALIBRATION

Vertical Drainage & Condensation Sweeps

Integrating vertical mechanical lift pumps and moisture-scavenging condensation grids to interface safely with high-rise building HVAC networks.

THERMODYNAMIC LOAD SHIELD

Decoupled structural frames and modular expansion channels allow thermal wood cladding to expand and contract freely under rapid 90°C shifts, eliminating cracking and seam separation.

KAFD 310 Tower Engineering Detail
KAFD 310 Tower Construction Journey
THE BUILD PHASES

Lightweight Framing & Structural Calibrations

Building lightweight structural steel sub-frames to distribute heavy plunge water loads uniformly across composite skyscraper floor beams.

01
Structural ShoringComplete concrete envelope cure
02
Vapor Shell & MEPClash-free layout balancing
03
Joinery & MasonryTravertine cladding & Cedar joints
— HAPTICS & SURFACE SELECTION

Thermo-pine Timber & Brushed Aluminum

Grade-A Scandinavian pine timber panels, anodized marine-grade aluminum frame channels, and sound-absorbing fabric panel trims.

Italian TravertineRed Cedar WoodBrushed BronzeFused QuartzHydrophobic Sealants

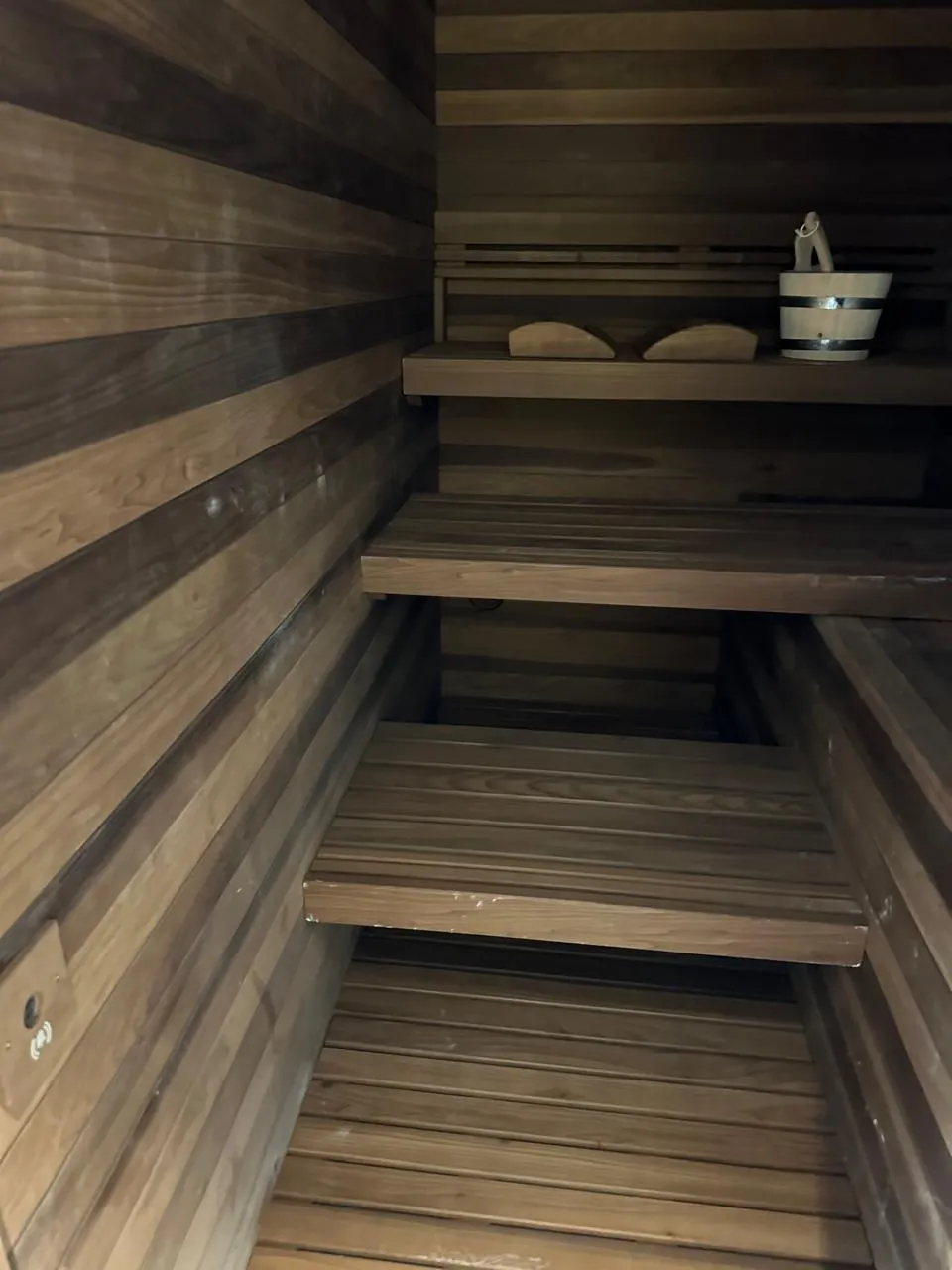

KAFD 310 Tower Material Texture Detail
— TRANSFORMATION PROGRESSION

Blueprint to Sanctuary

Drag the center slider handles to reveal the transformation from initial CAD blueprints to the finalized wellness environment.

PROJECT BLUEPRINTKAFD 310 Tower
SHEET NO.A-101 / PLAN
TECHNICAL INSTALLATIONSYSTEM CALIBRATIONCONTRAST CIRCUIT18000 mm [EXTERIOR LENGTH]10000 mm
LOCATIONRiyadh
SYSTEM TYPEInfrastructure FLOOR PLAN
TOLERANCE±0.5mm SCALE
Completed project view
01 / Concept Blueprint
02 / Finished Reality
— PHOTOGRAPHIC PORTFOLIO

Cinematic Case Gallery

Browse the unique spaces, architectural curves, and engineering assemblies built for KAFD 310 Tower. Click any image to launch the cinematic lightroom viewer.

WALL SECTION DETAILTechnical Installation CLADDING STRUCTURE
SHEET NO.D-304 / DETAIL
CONCRETE SLAB SUBSTRUCTURE38mm WOOD STUDS & AIR GAP80mm MINERAL WOOL INSULATIONALU-FOIL VAPOR SHIELD BARRIER12mm PREMIUM FINNISH CEDAR CLADDING
DETAIL TARGETKAFD 310 Tower SPECIFICATIONS
SCALENTS (NOT TO SCALE)
APPROVED BYLE LEAD ENGINEER
LIGHTING SPECIFICATIONKAFD 310 Tower CIRCADIAN STUDY
SHEET NO.L-202 / CONE
ZONE A-1 SPOTWARM AMBIENT (2700K)FLUX output: 350 lm
ZONE A-2 COLD PLUNGE SPOTCHROMOTHERAPY (6500K)FLUX output: 280 lm
LIGHT CYCLE CONTROLAUTOMATED CHRONO-SCHEDULER
INDEXCRI RA > 98
SYSTEM DATALE LIGHT-FLOW CONTROL
HYDROTHERMAL FLOW PIPINGPremium Materials FLOW DIAGRAM
SHEET NO.M-505 / FLOW
BUFFER TANKPUMP 01UV-C STERILIZERHEAT COILSUPPLY LOOPRETURN MANIFOLD
CIRCUIT TARGETKAFD 310 Tower LOOP SYSTEM
VOLUMETRIC RATE12.5 L/SEC (CALIBRATED)
TELEMETRY FEEDACTIVE MODBUS IP
